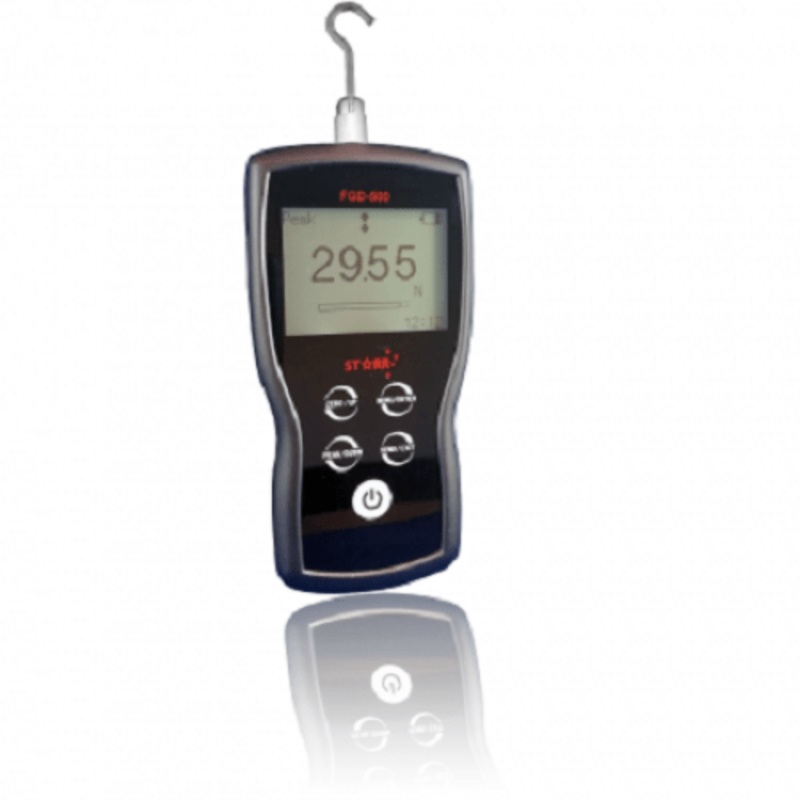

FGD Force Gauge (20N) – IC-FGD-1-20N

Standard delivery kit includes force gauge, 6 standard push/pull attachments (hook, flat, chisel, cone, v-notch anvil and 80mm extension rod), software CD, USB charging/data cable and mains AC adapter, factory calibration certificate and user manual.

Features:

Compact, ergonomic body with rugged black anodized coating and touch sensitive keypad
1000 entry internal data logger and software for output
Auto-orientation display screen (switches instantly when gauge is inverted)
Visual and audible overload alarm protection
User adjustable low/high alarm limit setting

Choosing force capabilities:

There are many different force capacities available from as little as 2N (200gf) all the way up to 1000N (100kgf). It is important to choose a gauge with suitable capacity to ensure the load cell cannot be overloaded easily when performing your testing and it is recommended to move up to the next model as a precaution, provided the display resolution is acceptable.

For example, if you are testing around 40-45kgf, consider the 100kgf version to be safe as the 50kgf will be operating up around 90% of its capacity.

Importantly, at very low test forces (200gf to 5kgf) it can be very easy to overload the load cell through accidental impact by even a thumb and forefinger.

Specifications

:

Accuracy: 0.2% F.S.
Selectable Units: N, gf, kgf, ozf, and lbf. (Selectable)
Display: LCD with LED Backlight
Overload Capacity: 120% F.S.
Measurement Mode: Track, Peak, Auto-Peak
Sampling Rate: 1000 Hz
Memory: 1000 data
Power: Ni-MH rechargeable batteries
Battery Life: Approx. 20 hours per charge
Charger/Adaptor: Universal USB charger, Input:110~240VAC
Outputs: USB, set point output
Dimensions: 160 x 73 x 34mm
